Product Summary

The AD8001ART is a low power, high-speed amplifier designed to operate on ±5 V supplies. The AD8001ART features unique transimpedance linearization circuitry. This allows it to drive video loads with excellent differential gain and phase performance on only 50mW of power. The AD8001ART is a current feedback amplifier and features gain flatness of 0.1 dB to 100 MHz while offering differential gain and phase error of 0.01% and 0.025%. This makes the AD8001ART ideal for professional video electronics such as cameras and video switchers. Additionally, the low distortion and fast settling make the AD8001ART ideal for buffer high-speed A-to-D converters.

Parametrics

AD8001ART absolute maximum ratings: (1)Supply Voltage: 12.6 V; (2)Internal PowerDissipation2: Plastic DIP Package (N) 1.3W, ; (3)Small Outline Package (R) 0.9W, SOT-23-5 Package (RT) 0.5 W; (4)Input Voltage (Common Mode): ±VS; (5)Differential Input Voltage: ±1.2 V; (6)Output Short Circuit Duration: Observe Power Derating Curves; (7)Storage Temperature Range N, R: –65 to +125℃; (8)Operating Temperature Range (A Grade): –40 to +85℃; (9)Lead Temperature Range (Soldering 10 sec): +300℃.

Features

AD8001ART features: (1)Excellent Video Specifications (RL = 150 V, G = +2); (2)Gain Flatness 0.1 dB to 100 MHz; (3)0.01% Differential Gain Error; (4)0.0258 Differential Phase Error; (5)Low Power: 5.5 mA Max Power Supply Current (55 mW); (6)High Speed and Fast Settling: 880 MHz, –3 dB Bandwidth (G = +1), 440 MHz, –3 dB Bandwidth (G = +2), 1200 V/ms Slew Rate, 10 ns Settling Time to 0.1%; (7)Low Distortion:–65 dBc THD, fC = 5 MHz, 33 dBm 3rd Order Intercept, F1 = 10 MHz, –66 dB SFDR, f = 5 MHz; (8)High Output Drive.

Diagrams

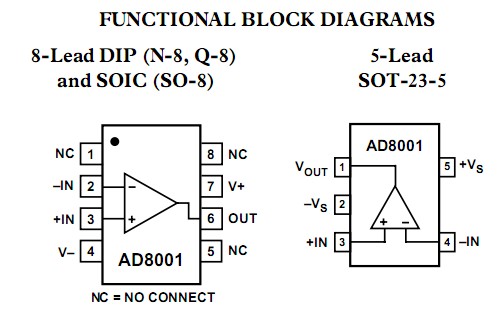

AD8001ART block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8001ART-R2
AD8001ART-R2
Analog Devices Inc
IC OPAMP CURR FEEDBK LP SOT23-5
Data Sheet
Negotiable
AD8001ART-REEL
AD8001ART-REEL
Analog Devices Inc
IC OPAMP CURR FEEDBK LP SOT-23-5
Data Sheet
Negotiable
AD8001ART-REEL7
AD8001ART-REEL7

IC OPAMP CF LP LDIST SOT23-5
Data Sheet
0-3000: $1.20
AD8001ARTZ-R2
AD8001ARTZ-R2

IC OPAMP CF LP LDIST SOT23-5
Data Sheet
Negotiable
AD8001ARTZ-REEL
AD8001ARTZ-REEL

IC OPAMP CF LP LDIST SOT23-5
Data Sheet
0-10000: $1.09
AD8001ARTZ-REEL7
AD8001ARTZ-REEL7

IC OPAMP CF LP LDIST SOT23-5
Data Sheet
0-1: $2.35
1-10: $2.10
10-25: $1.89
25-100: $1.72
100-250: $1.56
250-500: $1.39
500-1000: $1.17
