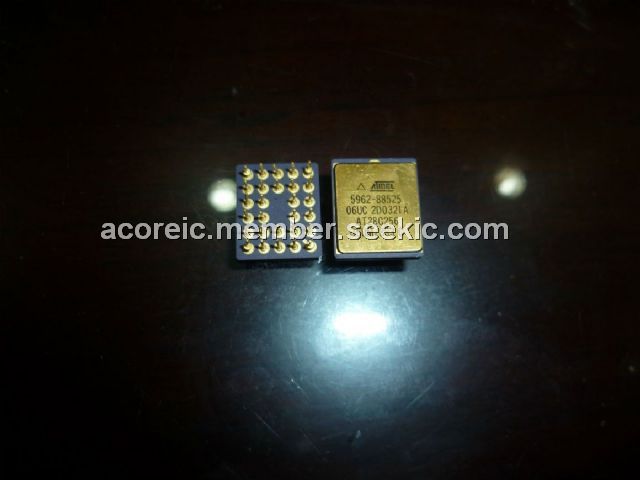

AT28C256-15UM883

32K x 8 Paged CMOS E2PROM, PGA28, Low Power Dissipation, High Reliability CMOS Technology, 150ns

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~15.00

PartNumber:: AT28C256-15UM883

Brand:: ATMEL Corporation - ATMEL | Pack: PGA | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susana's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-29

From Other Seller

Part Number:AT28C256-15UM883
US $8.00 - 15.00
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
TDA7360

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT28C256-15UM883 is a high-performance Electrically Erasable and Programmable Read Only Memory. Its 256K of memory is organized as 32,768 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT28C256-15UM883 offers access times to 150 ns with power dissipation of just 440 mW. When the AT28C256-15UM883 is deselected, the CMOS standby current is less than 200 uA.

Parametrics

AT28C256-15UM883 absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages(including NC Pins) with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with Respect to Ground:-0.6V to +13.5V.

Features

AT28C256-15UM883 features: (1)Fast Read Access Time:150 ns; (2)Automatic Page Write Operation: Internal Address and Data Latches for 64-Bytes, Internal Control Timer; (3)Fast Write Cycle Times: Page Write Cycle Time: 3 ms or 10 ms Maximum, 1 to 64-Byte Page Write Operation; (4)Low Power Dissipation: 50 mA Active Current, 200 μA CMOS Standby Current; (5)Hardware and Software Data Protection; (6)DATA Polling for End of Write Detection ; (7)High Reliability CMOS Technology: Endurance: 104 or 105 Cycles, Data Retention: 10 Years; (8)Single 5V ±10% Supply; (9)CMOS and TTL Compatible Inputs and Outputs; (10)JEDEC Approved Byte-Wide Pinout; (11)Full Military, Commercial, and Industrial Temperature Ranges.
