MTV048GP-01

Product Summary

The MTV048GP-01 is an On-Screen-Display Controller for CRT/LCD Monitor. The MTV048GP-01 designed for monitor applications to display built-in fonts onto monitor screens. The display operation occurs by transferring data and controls information from the micro controller to RAM through a serial data interface.

Parametrics

MTV048GP-01 absolute maximum ratings: (1)DC Supply Voltage (VDD,VDDA): -0.3 to +7 V; (2)Voltage with respect to Ground: -0.3 to VDD+0.3 V; (3)Storage Temperature: -65 to +150 ℃; (4)Ambient Operating Temperature: 0 to +70 ℃.

Features

MTV048GP-01 features: (1)Software control for CRT/LCD applications; (2)Full screen self-test pattern generator with programmable pattern color; (3)On-chip PLL circuitry (CRT) or external pixel clock input (LCD) up to 150 MHz; (4)Horizontal SYNC input up to 150 KHz; (5)Programmable horizontal resolutions up to 1524 dots per display line; (6)Full screen display consists of 15 (rows) by 30 (columns); (7)12x16 or 12x18 dot matrix selection; (8)A total of 384 fonts including 360 standard fonts, 16 multi-color fonts and 8 user fonts; (9)8 color selections for character foreground, background and window color; (10)Character button boxes with programmable box length; (11)Character bordering, shadowing and blinking effect for display; (12)Full-screen character double width control; (13)Double character height and/or width control per row; (14)Programmable positioning for display screen center; (15)Row to row spacing control per row to avoid expansion distortion; (16)4 programmable background windows with multi-level operation and programmable shadow width/height/color; (17)Software clear bit for full-screen erasing; (18)Programmable adaptive approach to handle H, V sync collision automatically by hardware; (19)Fade-in/fade-out or blend-in/blend-out effects; (20)Compatible with SPI bus or I2C interface with address 7AH (slave address is mask option); (21)5V or 3.3V power supply; (22)16-pin PDIP/SOP package.

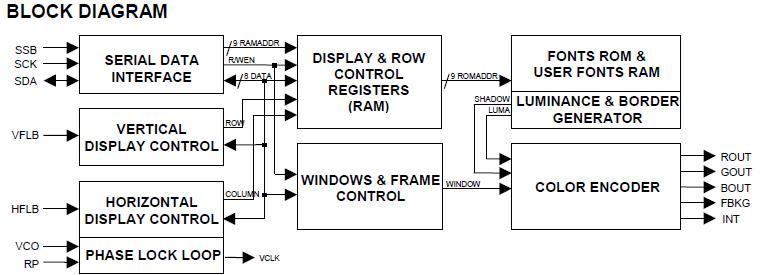

Diagrams
