Product Summary

The njm2207s is a video signal superimposer, with synchronous separation circuit, vertical sinchronous reproduce circuit and two video high performance switches for switching from video signal to character signal and background signal. The njm2207s is suitable for simply indicating the date time, TV channel and others.

Parametrics

njm2207s absolute maximum ratings: (1)Supply Voltage V+: 17 V; (2)Power Dissipation PD (ZIP16): 500 mW; (3)Operating Temperature Range Topr: -40 to +85℃; (4)Storage Temperature Range Tstg: -40 to +125℃.

Features

njm2207s features: (1)Operating Voltage (+4.75V to +13V); (2)With Synchronous Separation Circuit; (3)With Vertical Synchronous Reproduce Circuit; (4)Package Outline DIP14, DMP14, ZIP16; (5)Bipolar Technology.

Diagrams

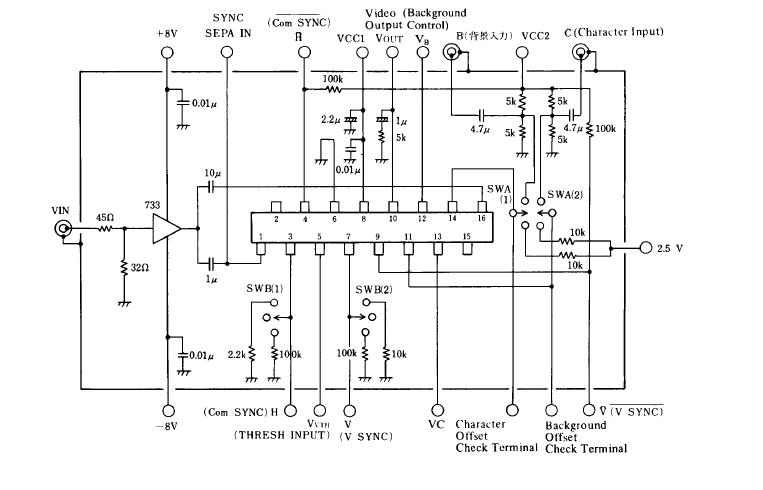

njm2207s circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

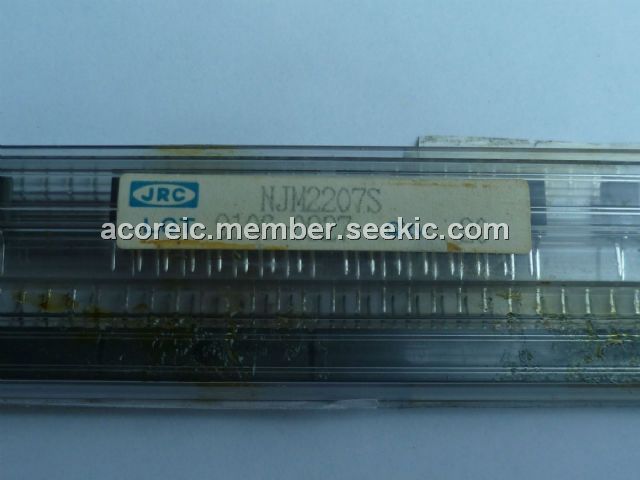

NJM2207S
NJM2207S

NJR

Video ICs Super Imposer

Data Sheet

Negotiable
