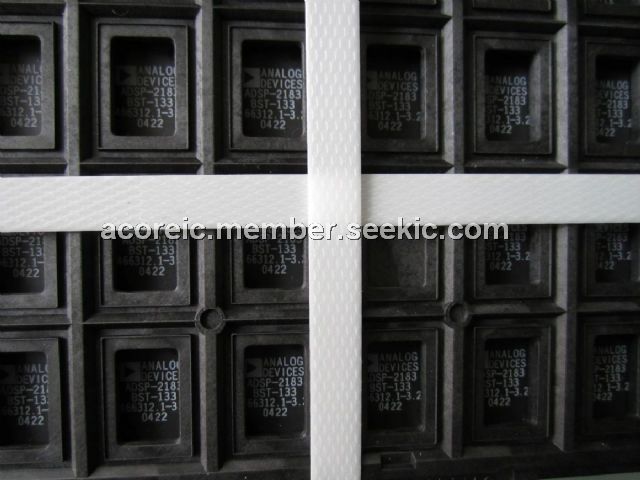

ADSP-2183BST-133

DSP Microcomputer, QFP, 52 MIPS Sustained Performance, Single-Cycle Instruction Execution

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: ADSP-2183BST-133

Brand:: Analog Devices - ADI | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susana's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-29

From Other Seller

Part Number:ADSP-2183BST-133
US $1.00 - 10.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

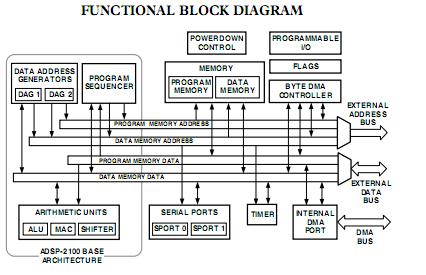

The ADSP-2183BST-133 is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications. The ADSP-2183BST-133 integrates 80K bytes of on-chip memory configured as 16K words (24-bit) of program RAM, and 16K words(16-bit) of data RAM. Power-down circuitry is also provided to meet the low power needs of battery operated portable equipment. The ADSP-2183BST-133 is available in 128-lead LQFP, and 144-Ball Mini-BGA packages.

Parametrics

ADSP-2183BST-133 absolute maximum ratings: (1)Supply Voltage:–0.3 V to +4.6 V; (2)Input Voltage:–0.5 V to VDD + 0.5 V; (3)Output Voltage Swing:–0.5 V to VDD + 0.5 V; (4)Operating Temperature Range (Ambient):–40℃ to +85℃; (5)Storage Temperature Range:–65℃ to +150℃; (6)Lead Temperature (5 sec) LQFP:+280℃.

Features

ADSP-2183BST-133 features: (1)19 ns Instruction Cycle Time from 26.32 MHz Crystal @ 3.3 Volts; (2)52 MIPS Sustained Performance; (3)Single-Cycle Instruction Execution; (4)Single-Cycle Context Switch; (5)3-Bus Architecture Allows Dual Operand Fetches in Every Instruction Cycle; (6)Multifunction Instructions; (7)Power-Down Mode Featuring Low CMOS Standby Power Dissipation with 300 Cycle Recovery from Power-Down Condition; (8)Low Power Dissipation in Idle Mode.
