CMY210

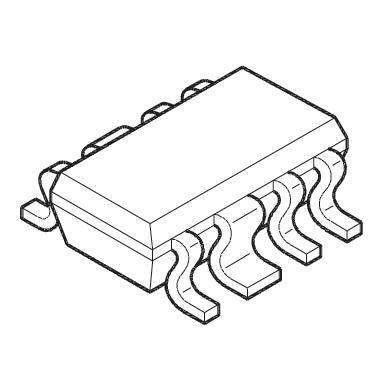

SOT, GaAs MMIC, 6 mA, 24 dBm, Single ended Ports, Wide LO-Level Range

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~2.00

PartNumber:: CMY210

Brand:: TriQuint Semiconductor - TriQuint | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susana's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-30

From Other Seller

Part Number:CMY210
US $0.50 - 2.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CMY210 is the GaAs MMIC.

Parametrics

CMY210 absolute maximum ratings: (1)Supply Voltage: 0 to 6 V; (2)DC-Voltage at LO Input: – 3 to 0.5 V; (3)DC-Voltage at RF-IF Ports1): – 0.5 to + 0.5 V; (4)Power into RF-IF Ports: 17dBm; (5)Power into LO Input: 10dBm; (6)Channel Temperature: –150 ℃; (7)Storage Temperature: – 55 to 150 ℃.

Features

CMY210 features: (1)Ultralinear Mixer with integrated LO-Buffer; (2)Very high Input-IP3 of typical 24 dBm; (3)Very low LO-Power demand of typ. 0 dBm; (4)Suited for Up- and Down-Conversion; (5)Wide LO-Frequency Range < 500 MHz to >2.5GHz; (6)Wide LO-Level Range; (7)Single ended Ports; (8)RF- and IF-Port Impedance 50 Ω; (9)Operating Voltage Range: < 3 to 6 V; (10)Very low Current Consumption of typical 6 mA; (11)All Gold Metallization.
