Product Summary

The EP1C3T144C8 is a field programmable gate array. It is based on a 1.5-V, 0.13-μm, all-layer copper SRAM process, with densities up to 20,060 logic elements (LEs) and up to 288 Kbits of RAM. The EP1C3T144C8 is a cost-effective solution for data-path applications. It supports various I/O standards, including LVDS at data rates up to 311 megabits per second (Mbps) and 66-MHz, 32-bit peripheral component interconnect (PCI), for interfacing with and supporting ASSP and ASIC devices. The EP1C3T144C8 also offers new low-cost serial configuration devices to configure Cyclone devices.

Parametrics

EP1C3T144C8 absolute maximum ratings: (1)Supply voltage:With respect to ground:–0.5V to 2.4V,–0.5V to 4.6V; (2)DC input voltage:–0.5V to 4.6V; (3)DC output current, per pin:–25mA to 25 mA; (4)Storage temperature No bias:–65℃ to 150℃; (5)Ambient temperature Under bias:–65℃ to 135℃; (6)Junction temperature BGA packages under bias:135℃.

Features

EP1C3T144C8 features: (1)2,910 to 20,060 LEs; (2)Up to 294,912 RAM bits (36,864 bytes); (3)Supports configuration through low-cost serial configuration device; (4)Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards; (5)Support for 66-MHz, 32-bit PCI standard; (6)Low speed (311 Mbps) LVDS I/O support; (7)Up to two PLLs per device provide clock multiplication and phase shifting; (8)Up to eight global clock lines with six clock resources available per logic array block (LAB) row; (9)Support for external memory, including DDR SDRAM (133 MHz), FCRAM, and single data rate (SDR) SDRAM; (10)Support for multiple intellectual property (IP) cores, including Altera MegaCore functions and Altera Megafunctions Partners Program (AMPPSM) megafunctions.

Diagrams

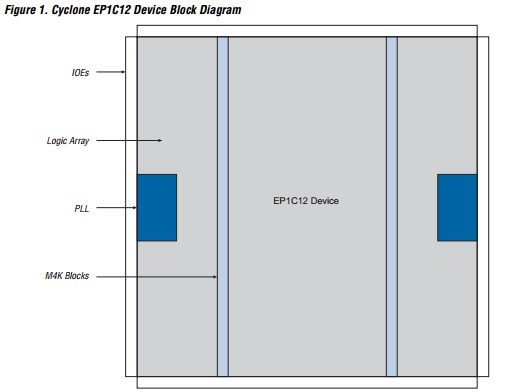

EP1C3T144C8 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EP1C3T144C8
EP1C3T144C8

IC CYCLONE FPGA 2910 LE 144-TQFP
Data Sheet
0-1: $8.12
EP1C3T144C8N
EP1C3T144C8N

IC CYCLONE FPGA 2910 LE 144-TQFP
Data Sheet
0-1: $7.38
