Product Summary
The MHL8118 is a 28V UHF Linear Amplifier. Internal DC blocking on RF ports reduces external component count and related circuit area. This hybrid utilizes push-pull circuit design.
Parametrics
MHL8118 absolute maximum ratings: (1)DC Supply Voltage:32Vdc; (2)RF Input Power:+20 dBm; (3)Storage Temperature Range:–40 to +100℃; (4)Operating Case Temperature Range:–20 to +100℃.
Features
MHL8118 features: (1)Supply Voltage: 28 Vdc; (2)Third Order Intercept: 41.5 dBm Typ; (3)Power Gain: 17.5 dB Typ (@ 900 MHz); (4)Excellent Phase Linearity and Group Delay Characteristics; (5)50 Ohm Input/Output Impedances.

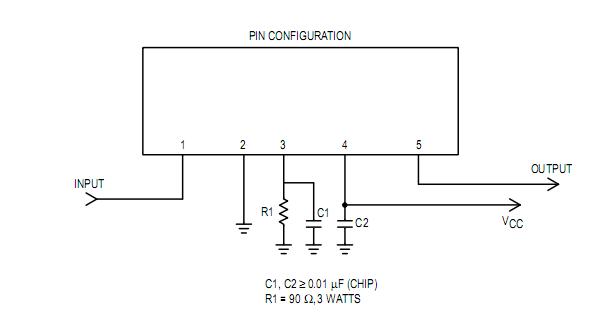

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MHL8118 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
MHL8015 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MHL8018 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MHL8115 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MHL8118 |
Other |
|
Data Sheet |
Negotiable |
|
||||
