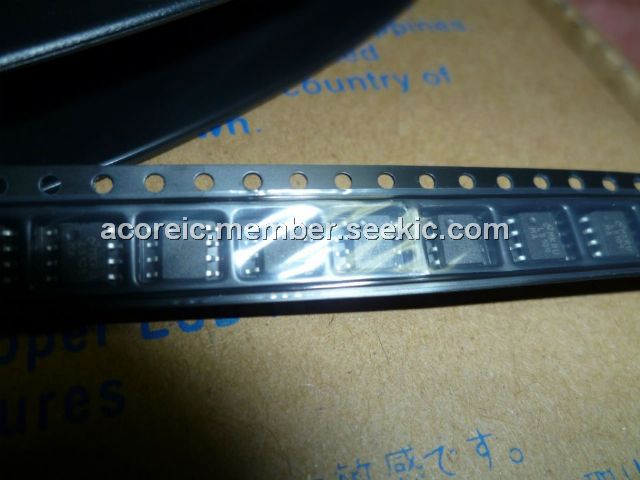

LM5109MAX/NOPB

sop8, low cost, high voltage, gate driver, 27 ns, Independent TTL compatible inputs, -0.3V to 18V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: LM5109MAX/NOPB

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susana's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-28

From Other Seller

Part Number:LM5109MAX/NOPB
US $1.00 - 2.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

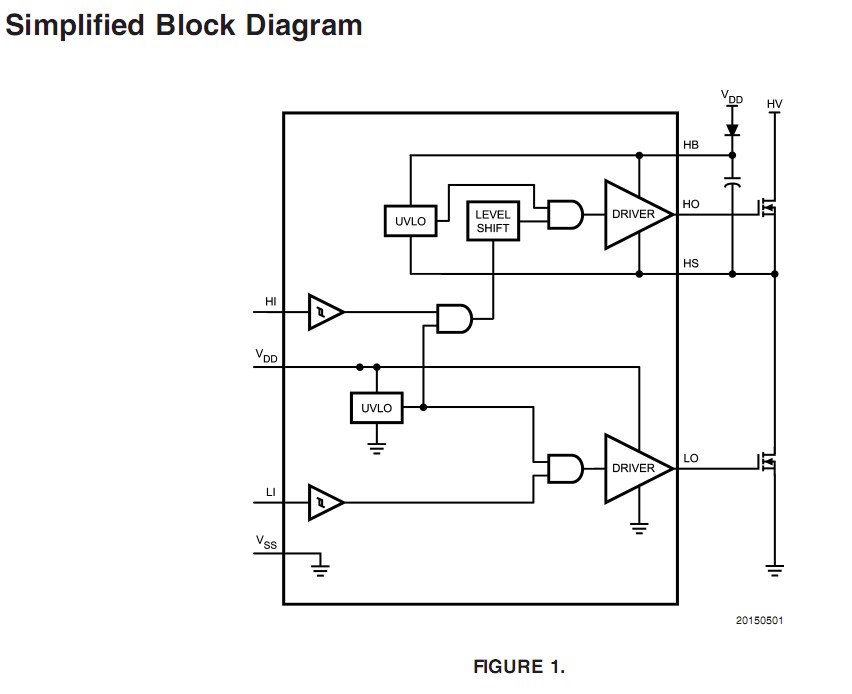

The LM5109MAX/NOPB is a low cost high voltage gate driver, designed to drive both the high side and the low side N-Channel MOSFETs in a synchronous buck or a half bridge configuration. The floating high-side driver is capable of working with rail voltages up to 100V. The outputs of the LM5109MAX/NOPB are independently controlled with TTL compatible input thresholds. A robust level shifter technology operates at high speed while consuming low power and providing clean level transitions from the control input logic to the high side gate driver. Under-voltage lockout is provided on both the low side and the high side power rails. The device is available in the SOIC-8 and the thermally enhanced LLP-8 packages.

Parametrics

LM5109MAX/NOPB absolute maximum ratings: (1)VDD to VSS: -0.3V to 18V; (2)HB to HS: -0.3V to 18V; (3)LI or HI to VSS: -0.3V to VDD +0.3V; (4)LO to VSS: -0.3V to VDD +0.3V; (5)HO to VSS VHS: -0.3V to VHB +0.3V; (6)HS to VSS (Note 6): -5V to 100V; (7)HB to VSS: 118V; (8)Junction Temperature: -40 to +150℃; (9)Storage Temperature Range: -55 to +150℃; (10)ESD Rating HBM (Note 2): 2 kV.

Features

LM5109MAX/NOPB features: (1)Drives both a high side and low side N-Channel MOSFET; (2)1A peak output current (1.0A sink / 1.0A source); (3)Independent TTL compatible inputs; (4)Bootstrap supply voltage to 118V DC; (5)Fast propagation times (27 ns typical); (6)Drives 1000 pF load with 15ns rise and fall times; (7)Excellent propagation delay matching (2 ns typical); (8)Supply rail under-voltage lockout; (9)Low power consumption; (10)Pin compatible with ISL6700.
