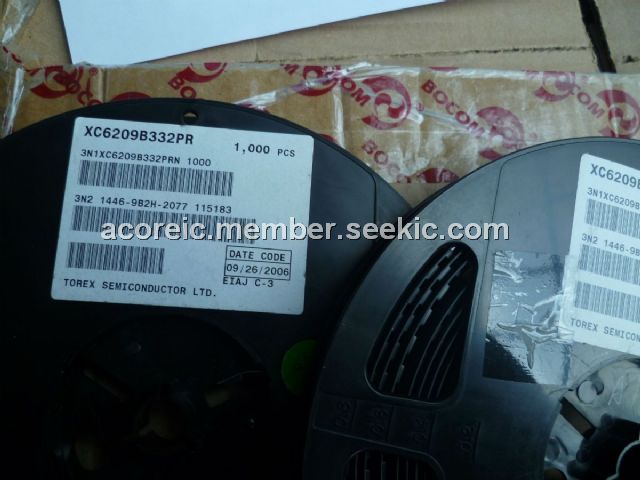

XC6209B332PR

highly precise, low noise, positive voltage LDO regulator, 12.0 V, 500mA, 500mW, SOT89

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: XC6209B332PR

Brand:: Torex Semiconductor - TOREX | Pack: SOT | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susana's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-10

From Other Seller

Part Number:XC6209B332PR
US $0.10 - 1.00
RTL8309SC

US $1.50 - 2.00 / Piece
(0) Remove
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

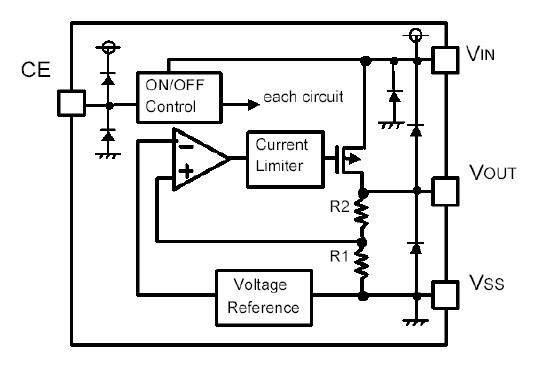

The XC6209B332PR is a highly precise, low noise, positive voltage LDO regulator manufactured using CMOS processes. The XC6209B332PR achieves high ripple rejection and low dropout and consists of a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. Output voltage of the XC6209B332PR is selectable in 50mV increments within a range of 0.9V ~ 6.0V. The series is also compatible with low ESR ceramic capacitors which give added output stability. This stability can be maintained even during load fluctuations due to the excellent transient response of the series. The current limiters foldback circuit also operates as a short protect for the output current limiter and the output pin. The CE function enables the output to be turned off, resulting in greatly reduced power consumption.

Parametrics

XC6209B332PR absolute maximum ratings: (1)Input Voltage VIN: 12.0 V; (2)Output Current IOUT: 500mA; (3)Output Voltage VOUT VSS: - 0.3 ~ VIN + 0.3 V; (4)CE Input Voltage VCE VSS: - 0.3 ~ VIN + 0.3 V; (5)Power Dissipation: 500mW; (6)Operating Temperature Range Topr: -40 ~ +85 ℃; (7)Storage Temperature Range Tstg: -55 ~ +125 ℃.

Features

XC6209B332PR features: (1)Maximum Output Current: 150mA (300mA=XC6209E to H types); (2)Dropout Voltage: 60mV @ 30mA, 200mV @ 100mA; (3)Minimum Operating Voltage: 2.0~10.0V; (4)Output Voltage Range: 0.9V ~ 6.0V (50mV increment); (5)Highly Accurate: ±2% (VOUT>1.5V), ±30mV (VOUT≦1.5V); (6)Low Power Consumption: 25μA (TYP.); (7)Stand-by Current: Less than 0.1μA (TYP.); (8)Highly Ripple Rejection: 70dB (10kHz); (9)Operating Temperature Range: -40℃~ +85℃; (10)Low ESR Capacitor: Ceramic capacitor compatible; (11)Process: CMOS; (12)Built-In Circuit: Current Limit Circuit; (13)Ultra Small Packages: SOT-25, USP-6B (XC6209), SOT-89-5 (XC6209).
