Product Summary

The MPC905EFR2 is a 1:6 PCI clock generator/fanout buffer. It is a six output clock generation device targeted to provide the clocks required in a 3.3V or 5.0V PCI environment. The MPC905EFR2 operates from a 3.3V supply and can interface to either a TTL input or an external crystal. The inputs to the device can be driven with 5.0V when the VCC is at 3.3V. The outputs of the MPC905EFR2 meet all of the specifications of the PCI standard.

Parametrics

MPC905EFR2 absolute maximum ratings: (1)Supply Voltage: –0.5 to 4.6 V; (2)Input Voltage: –0.5 to VCC + 0.5 V; (3)Operating Temperature Range: 0 to +70℃; (4)Storage Temperature Range: –65 to +150℃; (5)Soldering Temperature Range (10 Sec): +260℃; (6)Junction Temperature Range: +125℃; (7)Static Discharge Voltage: 1500 V; (8)Latch Up Current: 50 mA.

Features

MPC905EFR2 features: (1)Six Low Skew Outputs; (2)Synchronous Output Enables for Power Management; (3)Low Voltage Operation; (4)XTAL Oscillator Interface; (5)16-Lead SOIC Package; (6)5.0V Tolerant Enable Inputs.

Diagrams

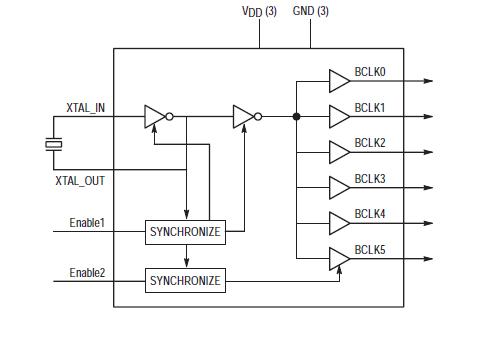

MPC905EFR2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MPC905EFR2
MPC905EFR2

IC CLK BUFFER 1:6 100MHZ 16-SOIC
Data Sheet
0-1: $2.00
1-25: $1.63
25-100: $1.47
100-250: $1.33
250-500: $1.17
500-1000: $1.00
