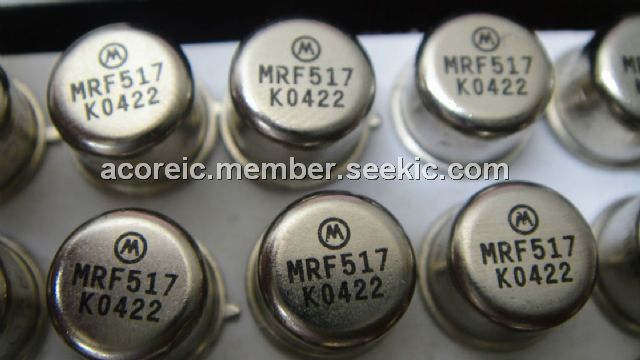

Product Summary

The MRF517 is a Silicon NPN transistor designed for VHF and UHF equipment. The applications of the device include low noise broadband amplifier; pre-driver, driver, and output stages.

Parametrics

MRF517 absolute maximum ratings: (1)VCEO, Collector-Emitter Voltage: 20 Vdc; (2)VCBO, Collector-Base Voltage: 35 Vdc; (3)VEBO, Emitter-Base Voltage: 3.0 Vdc; (4)IC, Collector Current: 150 mA.

Features

MRF517 features: (1)Silicon NPN, To-39 packaged VHF/UHF Transistor; (2)Gpe = 10 dB (typ) @ 60 mA, 300 MHz; (3)3 GHz Current-Gain Bandwidth Product (min) @ 60mA; (4)Broadband Noise Figure = 7.5 dB @ 50mA, 300 MHz.

Diagrams

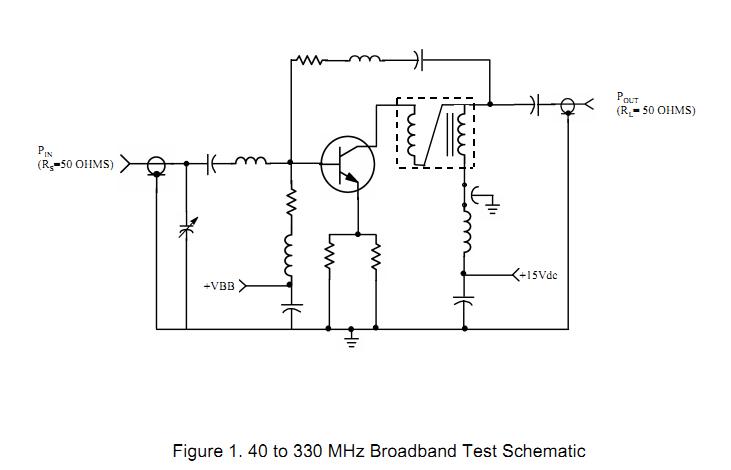

MRF517 test schematic
