Product Summary

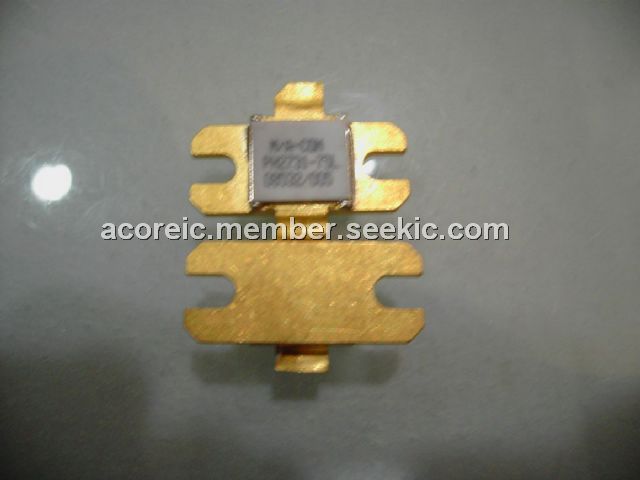

The PH2731-75L is 75W Radar Pulsed Power Transistor.
Parametrics
PH2731-75L absolute maximum ratings: (1)Collector-Emitter Voltage:65V ; (2)Emitter-Base Voltage:3.0V ; (3)Collector Current (Peak):7.0A ; (4)Power Dissipation @ +25℃:220W ; (5)Storage Temperature:-65 to +200℃; (6)Junction Temperature:200℃.
Features
PH2731-75L features: (1)NPN silicon microwave power transistors ; (2)Common base configuration ; (3)Broadband Class C operation ; (4)High efficiency inter-digitized geometry ; (5)Diffused emitter ballasting resistors ; (6)Gold metallization system ; (7)Internal input and output impedance matching ; (8)Hermetic metal/ceramic package ; (9)RoHS compliant.

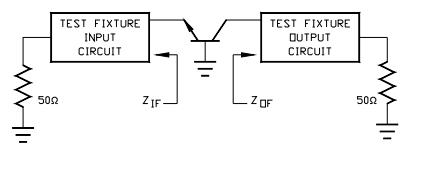

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PH2731-75L |
Other |
|
Data Sheet |
Negotiable |
|
||||
