Product Summary

The DS34LV87TMXNOPB is a high speed quad differential CMOS driver that meets the requirements of both TIA/EIA-422-B and ITU-T V.11. The CMOS DS34LV87TMXNOPB features low static ICC of 100 μA max which makes it ideal for battery powered and power conscious applications. The TRI-STATE enable, EN, allows the DS34LV87TMXNOPB to be disabled when the device is not in use to minimize power. The dual enable scheme allows for flexibility in turning devices on or off.

Parametrics

DS34LV87TMXNOPB absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7V; (2)Enable Input Voltage (EN): -0.5V to VCC + 0.5V; (3)Driver Input Voltage (DI): -0.5V to VCC + 0.5V; (4)Clamp Diode Current: ±20 mA; (5)DC Output Current, per pin: ±150 mA; (6)Driver Output Voltage (Power Off: DO+, DO-): -0.5V to +7V; (7)Maximum Package Power Dissipation @+25℃, M Package: 1226 mW; (8)Derate M Package: 9.8 mW/℃ above +25℃; (9)Storage Temperature Range: -65℃ to +150℃.

Features

DS34LV87TMXNOPB features: (1)Meets TIA/EIA-422-B (RS-422) and ITU-T V.11 recommendation; (2)Interoperable with existing 5V RS-422 networks; (3)Guaranteed VOD of 2V min over operating conditions; (4)Balanced output crossover for low EMI (typical within 40 mV of 50% voltage level); (5)Low power design (330 μW @ 3.3V static); (6)ESD ≥ 7 kV on cable I/O pins (HBM); (7)Industrial temperature range; (8)Guaranteed AC parameter: Maximum driver skew: 2 ns, Maximum transition time: 10 ns; (9)Pin compatible with DS26C31; (10)Available in SOIC packaging.

Diagrams

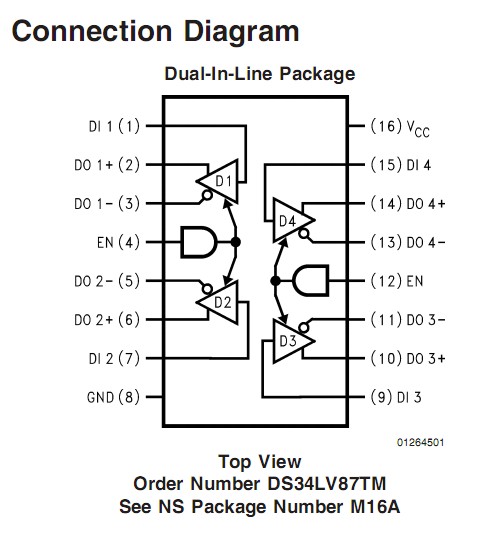

DS34LV87TMXNOPB connection diagram
