Product Summary
The LTC4210-1IS6#TR is a 6-pin SOT-23 Hot Swap controller that allows a board to be safely inserted and removed from a live backplane. An internal high side switch driver controls the GATE of an external N-channel MOSFET for a supply voltage ranging from 2.7V to 16.5V. The LTC4210-1IS6#TR provides the initial timing cycle and allows the GATE to be ramped up at an adjustable rate. The applications of the LTC4210-1IS6#TR are Hot Board Insertion, Electronic Circuit Breaker, Industrial High Side Switch/Circuit Breaker.
Parametrics
LTC4210-1IS6#TR absolute maximum ratings: (1)Supply Voltage (VCC):17V; (2)Input Voltage (SENSE, TIMER):– 0.3V to (VCC + 0.3V); (3)Input Voltage (ON):–0.3V to 17V; (4)Output Voltage (GATE):Internally Limited; (5)Operating Temperature Range:–40 to 85℃; (6)Storage Temperature Range:–65 to 150℃; (7)Lead Temperature (Soldering, 10 sec):300℃.
Features
LTC4210-1IS6#TR features: (1)Allows Safe Board Insertion and Removal from a Live Backplane ; (2)Adjustable Analog Current Limit with Circuit Breaker ; (3)Fast Response Limits Peak Fault Current ; (4)Automatic Retry or Latch Off On Current Fault ; (5)Adjustable Supply Voltage Power-Up Rate ; (6)High Side Drive for External MOSFET Switch ; (7)Controls Supply Voltages from 2.7V to 16.5V ; (8)Undervoltage Lockout ; (9)Adjustable Overvoltage Protection ; (10)Low Profile (1mm) SOT-23 (ThinSOT) Package.

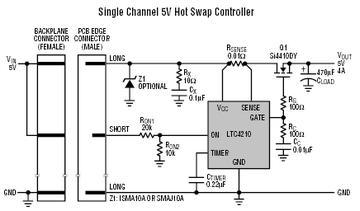

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC4210-1IS6#TR |
|
IC CONTROLLER HOT SWAP TSOT23-6 |
Data Sheet |
|
|
||||||
|
LTC4210-1IS6#TRM |
|
IC CONTROLLER HOT SWAP TSOT23-6 |
Data Sheet |
|
|
||||||
|
LTC4210-1IS6#TRMPBF |
|
IC CONTROLLER HOT SWAP TSOT23-6 |
Data Sheet |
|
|
||||||
|
LTC4210-1IS6#TRPBF |
|
IC CONTROLLER HOT SWAP TSOT23-6 |
Data Sheet |
|
|
||||||
