P89LPC901FD

8-SOIC, 8-bit microcontroller, two-clock 80C51 core, 1 kB, 3 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: P89LPC901FD

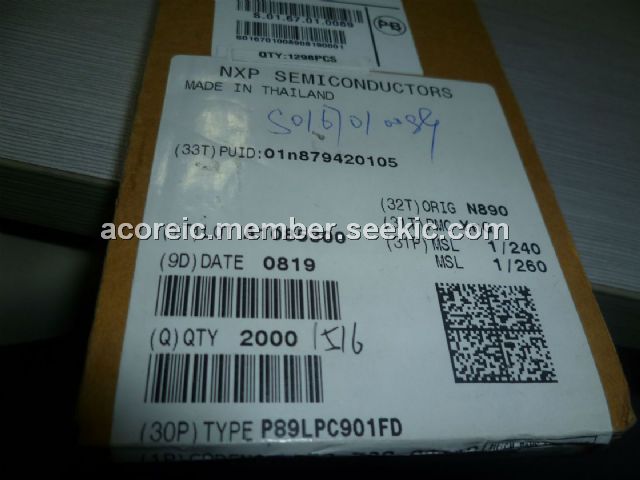

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susana's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-10

From Other Seller

Part Number:P89LPC901FD
US $1.00 - 2.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

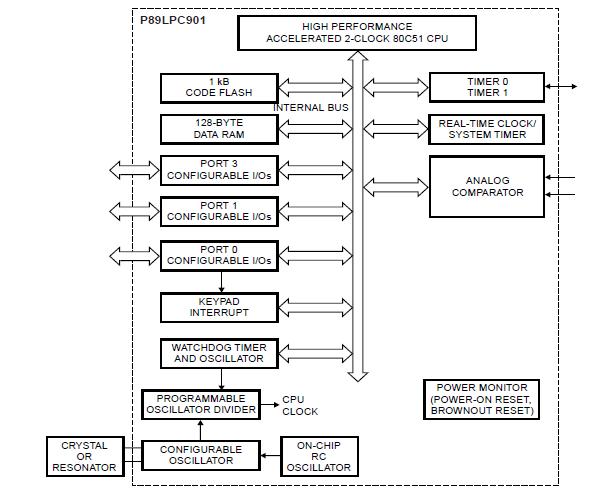

The P89LPC901FD is a single-chip microcontroller in low-cost 8-pin packages, based on a high performance processor architecture that executes instructions in two to four clocks, six times the rate of standard 80C51 devices. Many system-level functions have been incorporated into the P89LPC901FD in order to reduce component count, board space, and system cost.

Parametrics

P89LPC901FD absolute maximum ratings: (1)operating bias ambient temperature: -55 to +125℃; (2)storage temperature range: -65 to +150℃; (3)voltage on XTAL1, XTAL2 pin to VSS, as applicable: VDD + 0.5 V; (4)voltage on any other pin to VSS: -0.5 to +5.5 V; (5)HIGH-level output current per I/O pin: 8 mA; (6)LOW-level output current per I/O pin: 20 mA; (7)maximum total I/O current: 120 mA.

Features

P89LPC901FD features: (1)High-accuracy internal RC oscillator option allows operation without external oscillator components. The RC oscillator option is selectable and fine tunable; (2)2.4 V to 3.6 V VDD operating range with 5 V tolerant I/O pins (may be pulled up or driven to 5.5 V). Industry-standard pinout with VDD, VSS, and reset at locations 1, 8, and 4; (3)Up to six I/O pins when using internal oscillator and reset options; (4)8-pin SO-8 package; (5)1 kB byte-erasable Flash code memory organized into 256-byte sectors and 16-byte pages. Single-byte erasing allows any byte(s) to be used as non-volatile data storage; (6)128-byte RAM data memory; (7)Two 16-bit counter/timers.
