ADV7191KSTZ

video encoder, 7 V, 400 kHz, 4.625 mA, LQFP64

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: ADV7191KSTZ

Brand:: Analog Devices - ADI | Pack: LQFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susana's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-10

From Other Seller

Part Number:ADV7191KSTZ
US $1.00 - 2.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

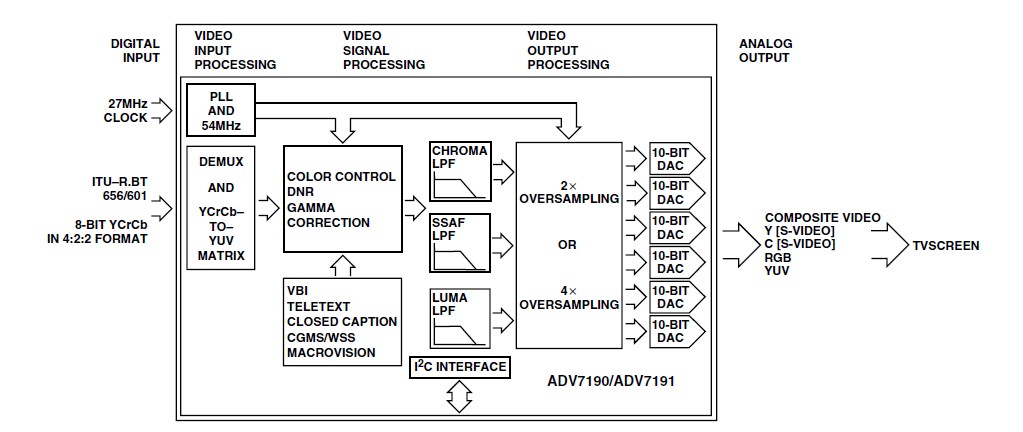

The ADV7191KSTZ is a video encoder with Six 10-Bit DAC and video encoder with six dac output. The ADV7191KSTZ builds on the performance of previous video encoders and provides new features such as, Digital Noise Reduction, Gamma Correction, 4× Oversampling and 54 MHz operation, Average Brightness Detection, Chroma Delay, an additional Chroma Filter, etc. The ADV7191KSTZ supports NTSC-M, NTSC-N (Japan), PAL N, PAL M, PAL-B/D/G/H/I and PAL-60 standards. Input standards supported include ITU-R.BT656/601 4:2:2 YCrCb in 8- or 16-bit format.

Parametrics

ADV7191KSTZ absolute maximum ratings: (1)VAA to GND: 7 V; (2)Voltage on Any Digital Input Pin GND: 0.5 V to VAA + 0.5 V; (3)Storage Temperature (TS): -65℃ to +150℃; (4)Junction Temperature (TJ): 150℃; (5)Body Temperature (Soldering, 10 secs): 220℃; (6)Analog Outputs to GN D: GND - 0.5 to VAA; (7)SCLOCK Frequency: 400 kHz; (8)Output Current (Max): 4.625 mA.

Features

ADV7191KSTZ features: (1)Six High-Quality 10-Bit Video DACs; (2)Multistandard Video Input; (3)Multistandard Video Output; (4)4 Oversampling with Internal 54 MHz PLL; (5)Programmable Video Control Includes: Digital Noise Reduction, Gamma Correction, LUMA Delay, CHROMA Delay; (6)Multiple Luma and Chroma Filters; (7)Luma SSAF(Super Subalias Filter); (8)Average Brightness Detection; (9)Field Counter; (10)Macrovision Rev 7.1; (11)CGMS (Copy Generation Management System); (12)WSS (Wide Screen Signaling); (13)Closed Captioning Support; (14)Teletext Insertion Port (PAL-WST); (15)2-Wire Serial MPU Interface; (16)Supply Voltage 5 V and 3.3 V Operation; (17)64-Lead LQFP Package.
