XC6209F122PR

precise, low noise, positive voltage LDO regulator, 12.0 V, 500mA, 500mW, SOT-89

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: XC6209F122PR

Brand:: Torex Semiconductor - TOREX | Pack: SOT | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susana's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-10

From Other Seller

Part Number:XC6209F122PR
US $0.10 - 1.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

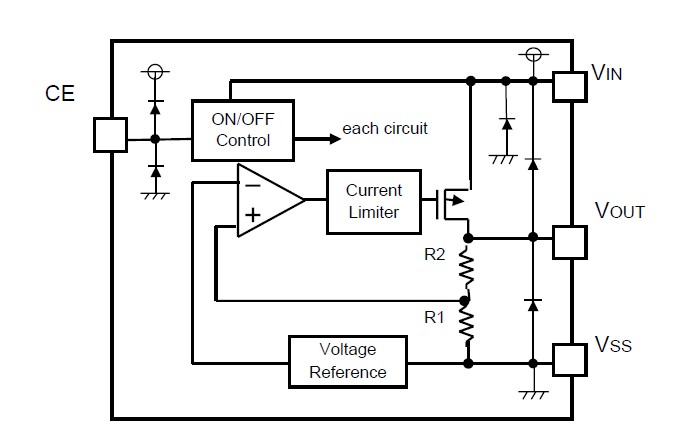

The XC6209F122PR is a precise, low noise, positive voltage LDO regulator manufactured using CMOS processes. The XC6209F122PR achieves high ripple rejection and low dropout and consists of a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. The XC6209F122PR is also compatible with low ESR ceramic capacitors which give added output stability. This stability can be maintained even during load fluctuations due to the excellent transient response of the series. The current limiters foldback circuit also operates as a short protect for the output current limiter and the output pin. The CE function enables the output to be turned off, resulting in greatly reduced power consumption.

Parametrics

XC6209F122PR absolute maximum ratings: (1)Input Voltage VIN: 12.0 V; (2)Output Current IOUT: 500mA; (3)Output Voltage VOUT:VSS - 0.3 ~ VIN + 0.3 V; (4)CE Input Voltage VCE:VSS - 0.3 ~ VIN + 0.3V; (5)Power Dissipation: 500mW; (6)Operating Temperature Range Topr: -40 ~ +85 ℃; (7)Storage Temperature Range Tstg: -55 ~ +125 ℃.

Features

XC6209F122PR features: (1)Maximum Output Current: 150mA (XC6209A ~ D series): 300mA (XC6209E ~ H series); (2)Dropout Voltage : 200mV @ IOUT=100mA; (3)Operating Voltage Range : 2.0V ~ 10V; (4)Output Voltage Range : 0.9V ~ 6.0V (50mV Step); (5)Highly Accurate : ± 2% (VOUT>1.5V): ± 30mV (VOUT<1.5V); (6)Low Power Consumption : 25μA (TYP.); (7)Standby Current : Less than 0.1μA (TYP.); (8)High Ripple Rejection : 70dB (10kHz); (9)Operating Temperature Range : - 40OC ~ + 85OC; (10)Low ESR Capacitor Compatible : Ceramic capacitor; (11)Ultra Small Packages : SOT-25, SOT-89-5, USP-6B.
