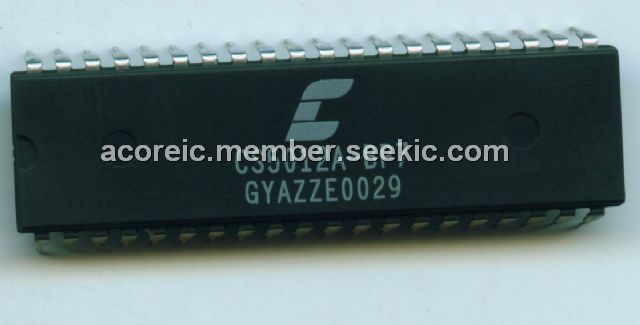

Product Summary
The CS5012A-BP7 is a 12-bit monolithic analog to digital converter with conversion times of 7.2μs, 14.25μs and 16.25μs Unique self-calibration circuitry insures excellent linearity and differential non-linearity, with no missing codes. Offset and full scale errors are kept within 1/2 LSB, eliminating the need for calibration. Unipolar and bipolar input ranges are digitally selectable.
Parametrics
CS5012A-BP7 absolute maximum ratings: (1)DC Power Supplies: Positive Digital, VD+: -0.3 to 6.0V; Negative Digital, VD-: 0.3 to -0.6V; Positive Analog, VA+: -0.3 to 6.0V; Negative Analog, VA-: 0.3 to -6.0V; (2)Input Current, Any Pin Except Supplies, Iin: ±10 mA; (3)Analog Input Voltage (AIN and VREF pins), VINA (VA-): - 0.3 to (VA+) + 0.3 V; (4)Digital Input Voltage, VIND: -0.3 to (VA+) + 0.3 V; (5)Ambient Operating Temperature, TA: -55 to 125℃; (6)Storage Temperature, Tstg: -65 to 150℃.
Features
CS5012A-BP7 features: (1)Monolithic CMOS A/D Converters, Microprocessor Compatible, Parallel and Serial Output, Inherent Track/Hold Input; (2)True 12, 14 and 16-Bit Precision; (3)Conversion Times: 16.25 μs; (4)Self Calibration Maintains Accuracy Over Time and Temperature; (5)Low Power Dissipation: 150 mW; (6)Low Distortion.

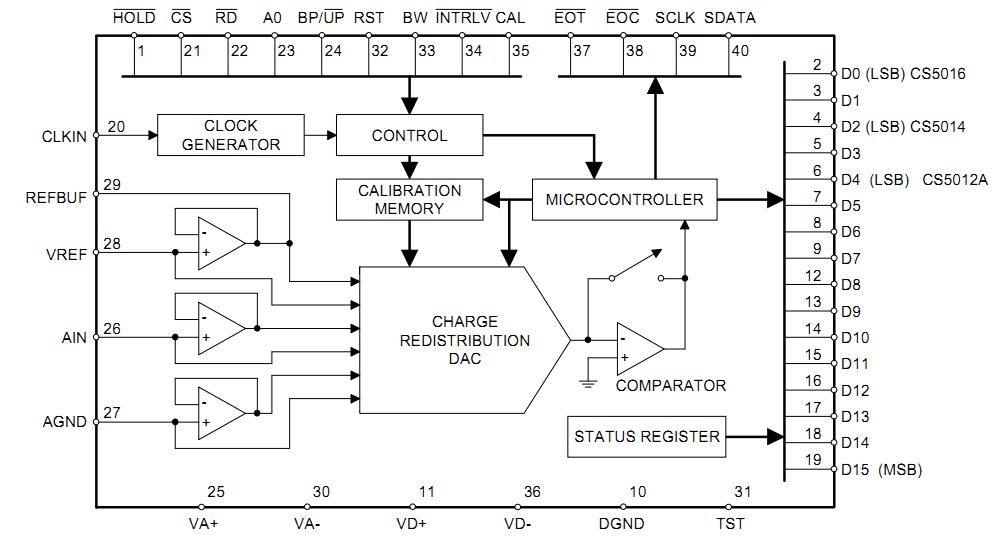

Diagrams
 |
 CS5012A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CS5012A-BL7Z |
|
IC ADC 12BIT SELF-CALBR 44-PLCC |
Data Sheet |
Negotiable |
|
||||
|
CS5014 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CS5014-BL14Z |
|
IC ADC 14BIT SELF-CALBR 44-PLCC |
Data Sheet |
Negotiable |
|
||||
|
CS5016 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CS5016-BL16 |
|
IC ADC 16BIT SELF-CALBR 44-PLCC |
Data Sheet |
Negotiable |
|
||||
